4in1 HD Over Coax Video Modem Kit 1xVideo+1xDC12V Power+RS48

VDS6700
Price on sign in

In stock

Product description

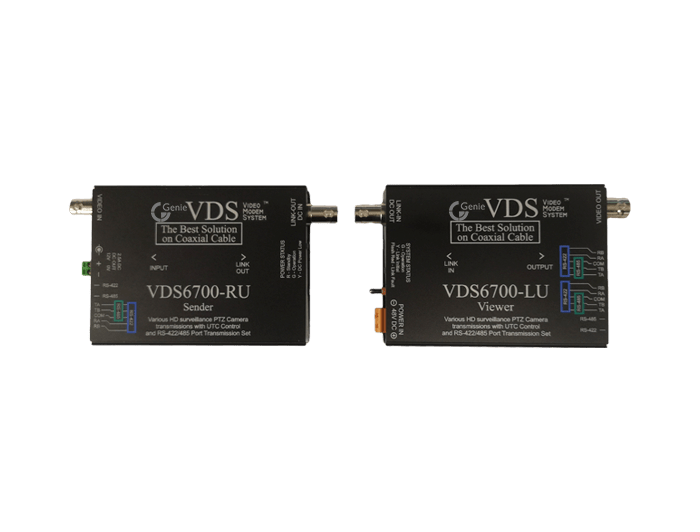

The VDS6700 is a coaxial video modem kit that transmits AHD, TVI, CVI and CVBS signals, RS422/RS485 and a DC12V power output over a single coaxial cable. The VDS6700 consists of a sender unit and a viewer unit that offers a high performance solution with a compact size and weight.


Key features

  • Transmits video, RS422 / RS485 & DC12V power over a single coaxial cable
  • Real-time transmission up to 500 metres (no DC power)
  • Consists of sender unit and viewer unit
  • LED indicators on both units to display status
  • Built-in transient protection
  • Compact size and weight

Specification

Sender

VDS6700-RU (Remote Unit)

DC Power Output Capability

DC12V, 2.5A

Video Signal Input

BNC Socket

RS-422/485 Port

Terminal Block, 2.54 mm Pitch, 5 pin (2 Sets)

Coaxial Cable Link Out (w/ DC in):

BNC Socket

Viewer

VDS6700-LU (Local Unit)

Video Signal Input Level

1.0 Vpp

Video Signal Input Impedance

75 ohms

Bandwidth of Standard definition Video Signal

5.5 MHz (CVBS)

Bandwidth of High definition Video Signal

27 MHz (AHD / TVI / CVI)

S/N Ratio of Video Signal

46 dB

RS-422/485 Data Rate

600 bps to 64 Kbps

Coaxial Cable Link In (w/ DC out):

BNC Socket

DC Power Input

PTB, 5.0mm Pitch, 2 pin

Video Output

BNC Socket

RS422-285 Port

Terminal Block, 2.54mm Pitch, 5 pin (2 sets)

Dimension

100.0 mm (L) x 75.0 mm (W) x 25.0 mm (H)

Net Weight

210 gm
