4in1 HD Over Coax Video Modem Kit 1x Video+1x DC24V Power+ RS485
VDS6701
Price on
sign in
Out of stock
Product description

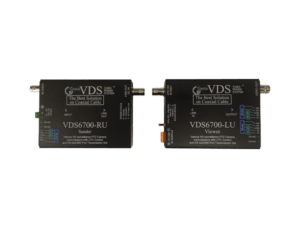

The VDS6701 is a coaxial video modem kit that transmits AHD, TVI, CVI and CVBS signals, RS422/RS485 and a DC24V power output over a single coaxial cable. The VDS6701 consists of a sender unit and a viewer unit that offers a high performance solution with a compact size and weight.
Key features
- Transmits video, RS422 / RS485 & DC24V
- Real-time transmission up to 500 metres (no DC power)
- Consists of sender unit & viewer unit
- LED Indicators on both units to display status
- Built-in transient protection
- Compact size and weight
Specification
- Sender, VDS6701-RU
-
(Remote Unit)
- DC Power Output Capability
-
DC24V, 1.25A
- RS-422/485 Data Rate
-
600 bps to 64 Kbps
- Video Signal Input
-
BNC Socket
- RS-422/485 Port
-
Terminal Block, 2.54 mm. Pitch, 5 Pin
- Coaxial Cable Link Out (w/ DC in):
-
BNC Socket
- Viewer, VDS6701-LU
-
(Local Unit)
- Video Signal Input Level
-
1.0 Vpp
- Video Signal Input Impedance
-
75 ohms
- Bandwidth of Standard Definition Video Signal
-
5.5 MHz (CVBS)
- Bandwidth of High Definition Video Signal
-
27 MHz (AHD / TVI / CVI)
- S/N Ratio of Video Signal
-
46 dB
- DC Power Input
-
48V, 1.25A (60 Watts)
- RS422/485 Data Rate
-
600 bps to 64 Kbps
- Coaxial Cable Link In (w/ DC out):
-
BNC Socket
- Video Output
-
BNC Socket
- RS422/485 Port
-
Terminal Block, 2.54 mm Pitch, 5 Pin (2 Sets)
- Dimension
-
100.0 mm (L) x 75.0 mm (W) x 25.0 mm (H)
- Net Weight
-
210 gm
