Xpert Range

PoE 32 Channel H.265 8MP NVR with 4HDD Bays, Facial Recognition and LPR

WNVR432P5AI
Price on sign in

Out of stock

Product description

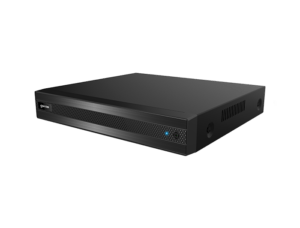

The Genie WNVR432P5AI is a 32 channel high definition 8MP network video recorder with 4HDD bays. The WNVR432P5AI also supports face recognition and ANPR when used in conjunction with any “Xpert” range of face recognition and LPR IP cameras. The WNVR432P5AI features up to 16 channel simultaneous playback as well as 16 PoE network ports which supports direct connection from the IP camera to the NVR. The NVR can support the latest H.265 and H.264 encoding streams. The WNVR432P5AI NVR has a dedicated iPhone and Android app (Super Live Plus) and are supplied with free Windows / MAC CMS software.


Key features

  • Supports 32 CH 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 1280 × 1024 / 960p / 720p / 960H / D1 /CIF IP video input
  • H.265S/H.265+/H.265/H.264 coding
  • Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
  • Multi-mode recording: manual / timed / motion / sensor / POS / AI recording
  • Playback : 16 CH simultaneous playback
  • Search : time slice, time, event, tag search and smart search
  • Supports face detection and comparison
  • Supports POS information overlay on live view and playback
  • Multi-user online simultaneously
  • Supports multiple VCA (Video Content Analytics) events, such as object abandoned/ missing, region intrusion, tripwire, video
    exception, etc.
  • Express and flexible backup via USB, network and so on
  • Pentaplex : preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol
  • Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
  • 16 PoE network ports; PoE power supply supported
  • Authorisation management, log view and device status view
  • Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
  • 4K output, true high resolution display
  • Supports PTZ preset and auto cruise, up to 255 presets and 8 cruises
  • Supports NAT function and QRCode scanning by mobile phones
  • Powerful mobile surveillance by smart phones with iOS and Android OS
  • HTML5 compatible browser support with firmware version 1.4.5 and above

Specification

OS

Embedded Linux

Mobile OS

iOS, Android

IP Video Input

32 channel IPC input

Incoming Bandwidth

256Mbps

Outgoing Bandwidth

256Mbps

IP Video Input Resolution

12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 1280 × 1024 / 960p / 720p / 960H / D1 / CIF

Channel

32 CH

Face Picture Database

32 libraries, 5000 face pictures

Computing Capability

180 pictures / minute

Face Picture Search

Search by picture is supported

Database Management

Add, modify, delete and search face pictures

Face Picture Adding

Add face pictures through App, Web and external import

External Face Picture Enrolment

Resolution: 128×128~920×1080
Size: ≤ 70KB
Format: jpg & jpeg

Face Picture Comparison

Supports allow list and block list alarm

Face Track

Yes

Map of Face Track

Resolution: 2560×1920
Size: ≤ 512KB
Format: jpg & jpeg

Statistic Graph of Face Information

Bar graph

Statistic Mode of Face Information

Statistics by day, week, month, quarter as well as customised time period

Remote Monitoring

Immix: Compatible with Immix via RTSP only (2-way audio not supported)
Sentinel: Yes, Firmware 1.2.0 or later
Remote Access: Internet Explorer (ActiveX), HTML5 compatible browser support with firmware version 1.4.5 and above

Network Interface

RJ45 10 / 100 / 1000 Mbps × 1

PoE Port

RJ45 × 16 (IEEE802.3af, output power: ≤ 150W)

Protocol

TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, Onvif, etc.

Web Client

Max. 20 users access

Video Structure Ananlysis

Human/Vehicle Classification: Yes

Simultaneous Playback

Max 16 CH

Search

Time slice / Time / Event / Tag / Smart search

Smart Search

Highlighted colour to display the camera record in a certain period of time, different colours refers to different record events.

Function

Play, pause, FF, FB, digital zoom, etc.

Decoding Capability

Live View / Playback: 1CH 12MP/4CH 5MP/9CH 720p/16CH D1

USB Port

USB 2.0 x 1 , USB 3.0 x 1

Remote Controller

Optional

RS485

Yes (Full-duplex), Connect to PTZ or keyboard

Alarm Mode

Manual, Sensor, Motion, Exception, Smart events

Input

16 CH local alarm input, supports IPC alarm input

Output

4 CH

Triggering

Record, Snap, Preset, E-mail, etc.

Record Stream

Dual stream recording

Resolution

12MP @ 20fps, 8MP/ 6MP / 5MP / 4MP / 3MP / 1080p / 1280×1024 / 960p / 720p / 960H / D1 /CIF @ 30fps (NTSC) / 25fps (PAL)

Frame Rate

NTSC: 30fps, PAL: 25fps

Mode

Manual / Timed / Motion / Sensor /POS / AI recording

ANR

Automatic network replenishment (Yes)

Local Backup

USB stick, USB mobile HDD

Network Backup

Yes

Storage

HDD: SATA x 4, Max. 10TB per HDD

Network Input

32 CH IPC audio input

Two-Way Audio

RCA × 1

Local Output

RCA × 1

Compression

G.711 (A/U)

Other Functions

Fisheye: Supports fisheye dewarping via Web Client and mobile App
Plate Recognition: Yes

Language

30 languages

Power Supply

ATX, 292W

Consumption

≤ 15W
(Without HDD and PoE power supply)

Working Environment

-10~50°C, 10%~90% (Humidity)

Dimensions

440 x 390 x 70 mm
