4 Door 8 Reader OSDP PoE Door Controller with 6amp 12V DC Power Supply in Metal Housing
In stock
Product description

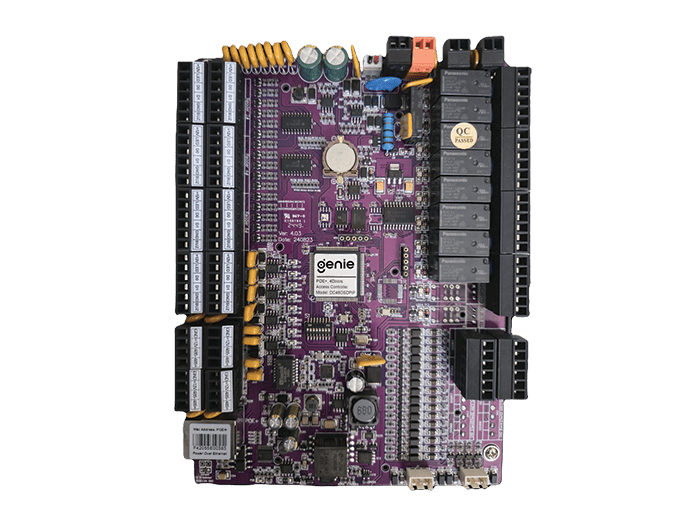

The Genie DC48OSDPIP is a 4 door and 8 reader (4 in and 8 out) controller.
Supplied in a sturdy metal box with hinged lid, the DC48OSDPIP includes cable management
and a 6 Amp DC12V power supply as well as being compatible with most Wiegand and OSDP devices at the same time.
It can be used in a standalone or networked configuration mode (TCP/IP) It also offers a comprehensive on board programmable
I/O module allowing the installer to fully programme I/O’s via input/output action or by 255 real world event scenarios.
Key features
- 32 bit ST ARM® CortexTM-M4 processor
- 10/100M based TCP/IP communication
- Power over Ethernet (POE+, 30W)
- Fit to DIN rail installation
- Backup battery interface, battery inspect
-
Compatible with both Wiegand and OSDP reader at the same time
-
Compatible with all Wiegand reader formats from 24 to 72 Bits
- 24 sets of flow control & lockdown feature
-
Supports master + slave cards, multi groups cards
- Supports double confirmed by centre
- Supports user PIN identify
- Supports anti-passback
- Multiple door status working modes
-
Long memory storage up to 20 years during power off
-
CE, FCC, RoHS Certificated
Specification
- Weight
- 3.02 kg
- CPU
-
32 Bits ARM® Cortex-M4 Processor
- Cardholder Capacity
-
100,000 Cardholders (250,000 extendible)
- Data Memory
-
512KB RAM+64MB Flash
- Backup Battery
-
1 Lithium battery backup (up to 20 years data retention)
- Door Relay (NC/NO)
-
4
- Door Sensor (NO)
-
4, Supervisor (4 Status)
- Exit Button
-
4
- Auxiliary Output
-
4
- Auxiliary Input
-
4, Supervisor (4 Status)
- Wiegand reader
-
8 pieces
- OSDP reader Bus
-
4 Lines (4-pinconnector), Maximum Distance: 1200meters (4000ft),
Reader Unit ID is from 1 to8, and matched with Wiegand 1-8# - TCP/IP
-
10/100M based
- Transaction Storage
-
1,000,000 logs (1,500,000 extendible)
- Operating Voltage
-
12VDC (±10%)
~ DC input mode: 12V DC, 3A
~ POE+ (Battery Low, Battery Lost),802.3at - Operating Current
-
≤200mA
- Standby Current
-
≤150mA
- Working Temperature
-
-40°C~70°C
- Metal case dimensions
-
403 x 384 x 72mm
- Weight
-
0.2Kg (PCB only)
4.7Kg (with metal case & PSU)
