HD Analogue Video Link 5.8GHZ 1080p 200m IP65 DC12V Pair ( CVBS 800m )
RF200HD
Price on
sign in
Out of stock
Product description

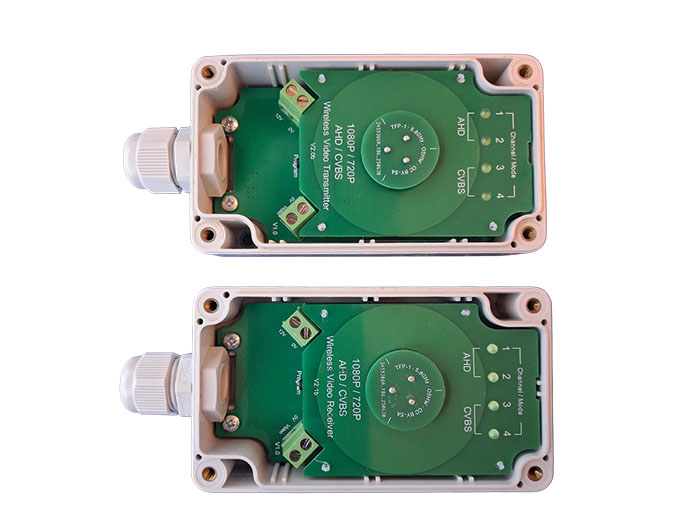

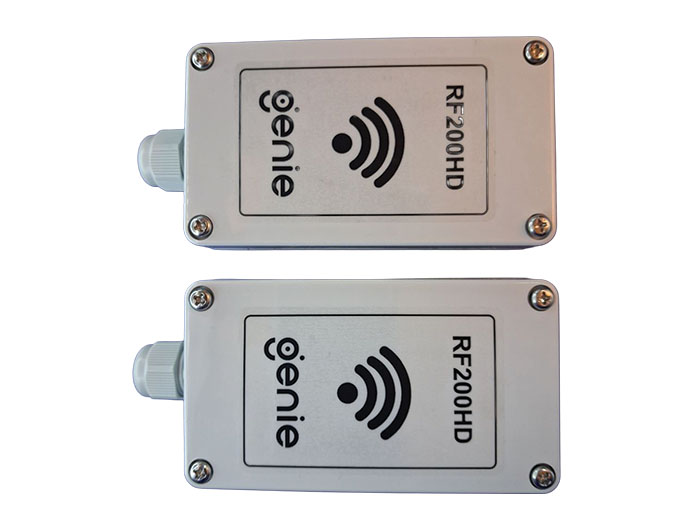

The Genie RF200HD is a high-quality FHD compatible wireless video link designed for easy installation and
reliable transmission. Housed in a compact IP65- rated weather resistant enclosure, both the transmitter and
receiver are suitable for outdoor installations without the need for additional protection from the elements.
Supporting up to 1080P resolution for AHD video signals, our RF200HD can offer up to 200-metres of
wireless range, and up to 1000-metres in CVBS mode (line of sight).
Key features
- 5.8GHz
- IP65 rated
- 2 RF channels
- 10 -14VDC operation voltage
- High quality AHD 1080P (2MP) video
- 200 Metres HD range (Line of Sight)* in ideal conditions
- 1000 Metres CVBS range (Line of Sight)* in ideal conditions
- 4 LED (RSSI) signal strength meter
-
Directional antennas (Reduced interference)
Specification
- Weight
- 0.58 kg
- Operating Voltage
-
10—14V DC (Max)
- Operating Current (Transmitter)
-
180mA (Max)
- Operating Current (Receiver)
-
140mA (Max)
- Transmitter Operating Frequencies
-
5740MHz & 5860MHz
- Transmitter Transmit Power
-
<= 14dBm
- Transmitter Video Input
-
1Vpp
- Transmitter Video Modulation
-
FM
- Transmitter RF Bandwidth (ADHD 1080P)
-
55MHz
- Transmitter RF Bandwidth (CVBS)
-
28MHz
- Receiver Operating Frequencies
-
5740MHz & 5860MHz
- Receiver RF Input Level
-
-85 ~ -10dBm
- Receiver Video Output
-
0.6 ~ 0.9Vpp
- Housing size without Aerial and Grommet
-
115 × 65 × 40mm
- Housing Rating
-
IP65
- Temperature Range
-
-20 to + 55°C
- Relative Humidity
-
95% (Non-Condensing)
- EMC Compliance
-
EN301–489
- Radio Compliance
-
EN300–440
