NDAA AI 8MP Eyeball PoE 25fps AF 2.8-12m 20-30m IR TDN DWDR Video Metadata
In stock
Product description

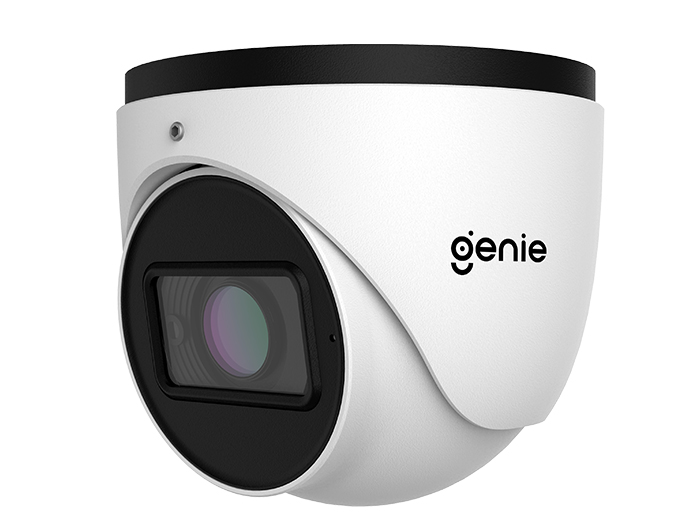

The Genie WIPX8NMEBVAF is a 8MP IP IR Eyeball camera with a 2.8- 12mm auto focus lens.
The camera features video metadata and facial recognition when paired with any Genie AI NVR.
Key features
- H.265+/H.265/H.264+/H.264/MJPEG coding
- Maximum resolution: 8MP (3840 × 2160)
- ICR auto switch, true day / night vision
- 30 ~ 50m IR night view distance
- Motorised zoom lens
- Supports electronic image stabilisation
- 3D DNR, true WDR, HLC, BLC and ROI coding
- 1 Channel audio input and 1 Channel built-in MIC
- Built-in micro SD card slot, up to 256GB
- DC12V/ PoE power supply
- IP67 ingress protection
- Supports three streams
-
Supports remote monitoring by smart phones with iOS and Android OS
- Supports SMD
- Supports P2P function
- Intelligent analytics
- Dual-system backup
Specification
- Weight
- 0.7 kg
- Image Sensor
-
1 / 2.8” CMOS
- Image Size
-
3840 × 2160
- Electronic Shutter
-
1 / 3s ~ 1 / 100000 s
- Iris Type
-
DC Iris
- Minimum Illumination
-
0.015 [email protected],AGC ON;0 lux with IR
- Lens
-
[email protected], motorised
- Lens Mount
-
Φ14
- Field of View
-
Horizontal: 102°~32°; Vertical: 54°~17°; Diagonal: 120°~37°
- Day & Night
-
ICR
- Wide Dynamic Range
-
120dB
- BLC
-
Yes
- HLC
-
Yes
- Defog
-
Yes
- S/N Ratio
-
≥50dB
- EIS
-
Yes
- Digital NR
-
3D DNR
- Angle Adjustment
-
Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°
- Video Compression
-
Main stream: H.265+ / H.265 / H.264+ / H.264
Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG - H.265 Compression Standard
-
Baseline Profile, Main Profile, High Profile
- Resolution
-
8MP (3840 × 2160), 6MP (3072 × 2048),
5MP (2592 × 1944), 4MP (2592 ×1520), 2K (2560 × 1440),
3MP (2304 × 1296), 1080P (1920 × 1080),
720P (1280 × 720), D1, CIF, 480 × 240, VGA (640 × 480) - Main Stream
-
8MP, 6MP, 5MP, 4MP, 2K, 3MP, 1080p, 720p (60Hz: 1 ~ 30fps, 50Hz: 1 ~ 25fps)
- Sub Stream
-
720p, D1, CIF, VGA, 480 x 240 (60Hz: 1~30fps, 50Hz: 1~25fps)
- Third Stream
-
720p, D1, CIF, 480 x 240 (60Hz: 1 ~ 30fps, 50Hz: 1 ~ 25fps)
- Bit Rate
-
64 Kbps ~ 12 Mbps
- Bit Rate Type
-
VBR / CBR
- Audio Compression
-
G711A / U
- Image Settings
-
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness,
Image Mirror, Image Flip, NR, etc. adjustable through client software or
web browser - ROI
-
Each ROI to be configured separately.
- Remote Monitoring
-
Web Browser, NVMS2.0, NVR, mobile APP
- Web Browser
-
Chrome 89.0+/ Edge 89.0+/ Firefox 87.0+/Safari 14.0+
- Online Connection
-
Supports simultaneous monitoring for up to 10 users;
supports multi-stream real time transmission - Network Protocol
-
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP,
SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPs, P2P, QoS - Interface Protocol
-
Onvif compatible
- General Function
-
Watermark, video mask, heartbeat, image distortion correction,
corridor pattern, ANR, cloud upgrade - Smart Alarm
-
Motion detection, SMD, SD card error, SD card full, IP address conflict,
Network disconnection, sensor alarm, audio alarm - General Function 2
-
Watermark, IP address filtering, video mask, heartbeat, password protection
- Security
-
Video encryption, firmware encryption, HTTPS encryption,
configuration encryption, illegal login lock, IP address filtering, 802.1x
authentication, basic and digest authentication for HTTP/RTSP - PoE
-
Yes , IEEE802.3af
- IR Distance
-
30 ~ 50 m
- Ingress Protection
-
IP67
- Smart Event
-
Line crossing, region intrusion / entrance / exiting, loitering detection,
illegal parking detection, abandoned / missing object detection - Statistics
-
Target counting by line/area, heat map
- Exception Detection
-
Scene change, video blur and abnormal colour detection, audio exception
- Face Detection
-
Face detection and face capture
- Video Metadata
-
Simultaneously captures human body, motor vehicle and non-motor
vehicle and extracts 13 human features,
4 motor vehicle features and 1 non-motor vehicle feature - DORI Distance ( W )
-
2.8mm – Detect 85m(278ft)
Observe 34m(111ft)
Recognise 17m(56ft)
Identify 8m(26ft) - DORI Distance ( T )
-
12mm – Detect 289m(948ft)
Observe 116m(380ft)
Recognise 58m(190ft)
Identify 29m(95ft) - Network Interface
-
RJ 45 10M/100M self-adaptive Ethernet port
- Video Output
-
No
- Audio Interface
-
1 Channel audio input; 1 Channel built-in MIC
- Alarm Interface
-
No
- Storage
-
Built-in micro SD card slot; up to 256GB
- Reset Interface
-
Yes
- Power Supply
-
DC12V/PoE
- Power Consumption
-
PoE: max. 9.7W; DC12V: max. 7.4W
- Storage Conditions
-
– 30 °C ~ 65°C (-22°F ~ 149°F),
Humidity: less than 95% (non-condensing) - Operating Environment
-
– 30 °C ~ 60°C (-22°F ~ 140°F)
Humidity: Less than 95% (non-condensing) - Dimensions
-
Φ 111.6 × 99.6mm
- Weight
-
Approx. 0.67KG
- Installation
-
Ceiling mounting; Wall mounting
- Certification
-
CE, FCC
- Environmental Protection
-
Directive EU RoHS, WEEE(2012/19/EU),
directive 94/62/EC and REACH(EC1907/2006)
