NDAA 32 Channel AI NVR 8M@25fps PoE,2xHDMI,AUDIO OUT,ALARM,RS485,8xHDD Bays
In stock
Product description

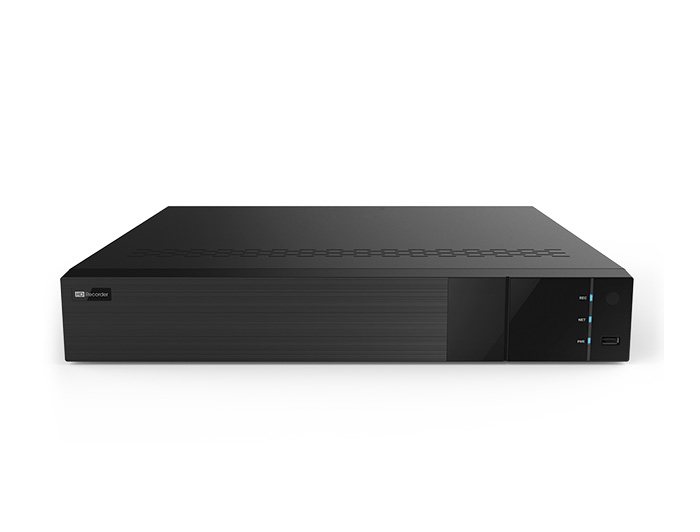

The Genie WNVRN832P5OAI is a 32 channel high definition 8MP network video recorder with 8HDD bays.
The WNVRN832P5OAI also supports face recognition and ANPR when used in conjunction with any “Xpert” range of face recognition and LPR IP cameras.
The WNVRN832P5OAI features up to 16 channel simultaneous playback as well as 16 Poe network ports which supports direct connection from the IP camera to the NVR.
The NVR can support the latest H.265 and H.264 encoding streams.
The WNVRN832P5OAI NVR has a dedicated iPhone and Android app (Super Live Plus) and are supplied with free Windows / MAC CMS software.
Key features
-
Supports 32 CH 12MP / 9MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 1280×1024 / 960p / 720p / 960H/D1/CIF IPC Input
- H.265S/H.265+/H.265/H.264 coding
-
Intuitive and user-friendly Graphic User Interface (GUI), Windows style operation by mouse
-
Multi-mode recording: manual / timed / motion / sensor / POS / AI recording
- Playback : 16 Channel simultaneous playback
-
Search: time slice, time, event, tag and smart search
-
Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing,
region intrusion, tripwire, video exception, etc. - Supports face detection and comparison
- Support license plate recognition
-
Supports POS information overlay on live view and playback
-
Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol
-
Compatible with third-party IPCs, such as ONVIF
- Multi-user online simultaneously
- Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
-
Support 16CH Poe IPC direct connection to NVR via Poe ports
-
Authorization management, log view and device status view
- 4K output, true high resolution display
-
Support PTZ pre-set and auto cruise, up to 255 pre-sets and 8 cruises
- Support NAT function and QR Code scanning by mobile phones
-
Powerful mobile surveillance by smart phones with iOS and Android OS
Specification
- Weight
- 7.6 kg
- System OS
Embedded Linux
- Mobile OS
iOS, Android
- IP Video Input
32 channel IPC input
- Incoming Video Bandwidth
320Mbps
- Outgoing Video Bandwidth
256Mbps
- IP Video Input Resolution
12MP / 9 MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 1280 × 1024 / 960p / 720p / 960H / D1 / CIF
- Video Output
HDMI1 : 3840 × 2160/1920 × 1080 / 1280 × 1024 / 1024 × 768
HDMI2 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
VGA ×1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
VGA and HDMI1 output the same video source- Video Compression
H.265S/H.265+/H.265/H.264
- Multi-screen Display
Main output: 1/4/6/8/9/13/16/25/32/36 (live view)
AUX output: 1/4/6/8/9 (live view)
Max. 32+9 Channel local live view- Face Detection Performance (AI by IPC)
32 Channel
- Face Detection Performance (AI by Device)
2 Channel (2MP)
- Face Recognition Comparison Capability
18 pictures / second
- Face Picture Database
32 libraries, 5000 face pictures
- Face Picture Search
Search by picture is supported
- Face Recognition Database Management
Add, modify, delete and search face pictures
- Face Picture Adding
Add face pictures through App, Web and external import
- Face Picture Comparison
Support successful face recognition alarm and stranger match alarm
- Face Track
Yes
- Statistic Graph of Face Information
Bar graph
- Statistic Mode of Face Information
Statistics by day, week, month, quarter as well as customised time period
- Perimeter Protection - Human/Vehicle Classification (AI by IPC)
32 Channel
- Perimeter Protection - Human/Vehicle Classification (AI by Device)
2 Channel (2MP)
- Network Interface
RJ 45 1000 Mbps × 2
- Network Protocol
TCP / IP, HTTP, HTTPs, 802.1X, FTP, DHCP, DDNS, RTP, RTSP, RTCP,
NTP, UPnP, SMTP, IPv6, IPv4, UDP, WebSocket, PPPoE, SNMP, IGMP- Network Client Connections
Max. 128 users access
- RS485
Yes (full-duplex), connect to PTZ or keyboard
- USB
USB 3.0 × 1 ; USB 2.0 × 2
- Remote Controller
Optional
- Simultaneous Playback
Max 16 Channel
- Playback Search
Time slice / Time / Event / Tag / Smart search
- Playback Smart Search
Highlighted colour to display the camera record in a certain period of time,
different colours refers to different record events.- Playback Function
Play, pause, FF, FB, digital zoom, etc.
- Playback Decoding Capability
Live View / Playback: 1 Channel 12MP/ 4 Channel 1080P
- Alarm Mode
Manual, Sensor, Motion, Exception, Smart events
- Alarm Input
16 Channel local alarm inputs
- Alarm Output
4 Channels
- Alarm Triggering
Record, Snap, Pre-set, E-mail, etc.
- Record Stream
Dual stream recording
- Record Resolution
12MP / 9MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P /
1280×1024 / 960P / 720P / 960H / D1 / CIF- Record Frame Rate
12MP: 20fps; 9MP or lower resolution:
NTSC: 30fps; PAL: 25fps- Audio Network Input
32 Channel IPC audio input
- Two-Way Audio
RCA × 1
- Local Audio Output
RCA × 1
- Audio Compression
G.711 (U/A)
- PoE Port
RJ 45 100Mbps × 16
- PoE Standard
IEEE802.3AF/AT
- PoE Output Power
≤ 150W
- Mobile Device OS
iOS, Android
- Local Backup
USB stick, USB mobile HDD
- Network Backup
Yes
- Storage
HDD: SATA × 8, max 10T per HDD; E-SATA × 1
- Other Functions
Fisheye: Supports fisheye de-warping via Web Client and mobile App
Plate Recognition: Yes- Video Metadata
Human/Vehicle Attribute Analysis (AI by IPC)
- Power Supply
ATX 300W(PoE)
- Consumption
≤ 30W ( without HDD and PoE power supply)
- Certificate
CE, FCC
- Environmental Protection
Complies with Directive EU RoHS, REACH and WEEE
- Working Environment
-10 ~ 50°C, 10% ~ 90% (Humidity)
- Dimensions
445 × 436 × 90 mm
