NDAA 8MP H.265 IP Eyeball Camera 2.8mm Lens IR Dual Illumination – White
In stock
Product description

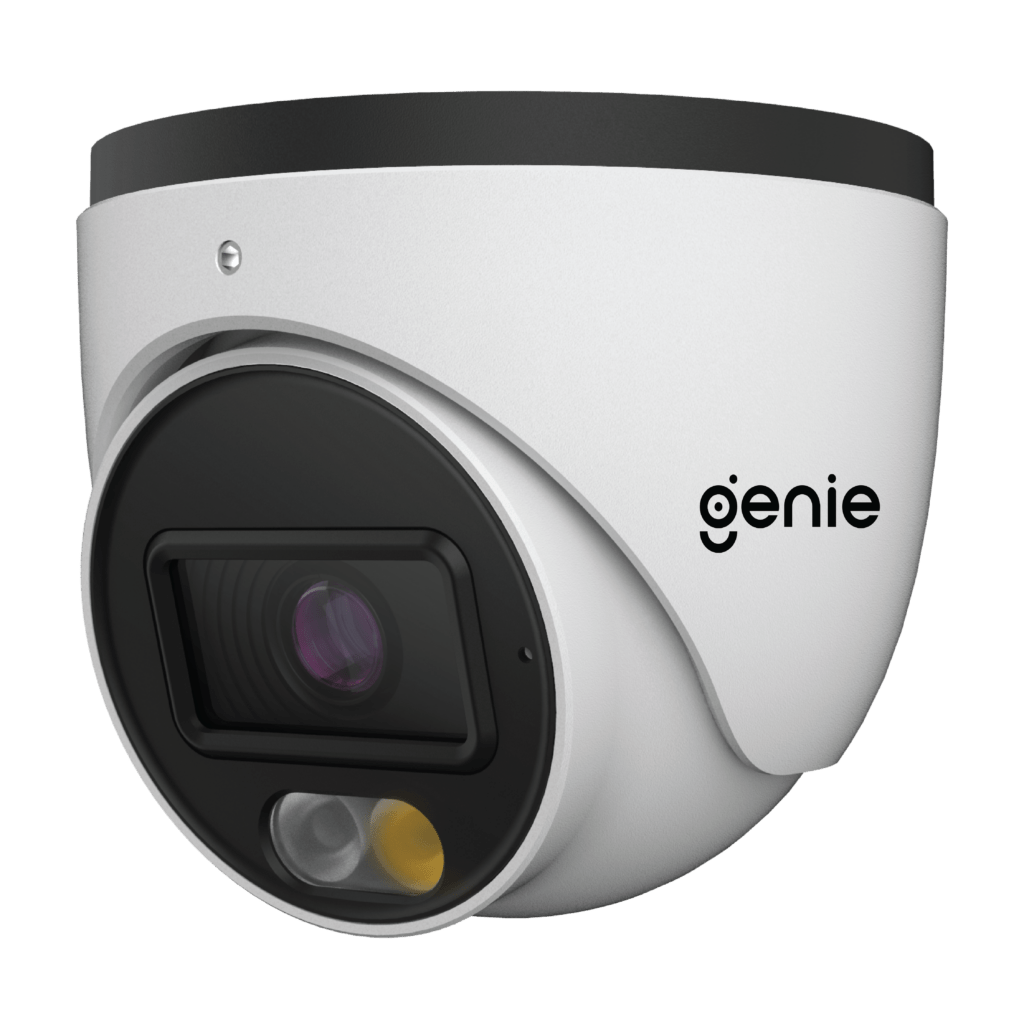

The Genie PWIP8NEBDI is a 8MP IP IR eyeball CCTV camera with a 2.8mm lens. The camera also features up to 30m IR night view distance, Dual Illumination as well as being IP67.
Key features
-
H.265+ /H.265 /H.264+ /H.264/MJPEG coding
- Max. resolution: 8MP (3840 × 2160)
- Auto day/night switch
- 3D DNR, HWDR, HLC, BLC, Defog etc.
- ROI coding
- Support smart supplement light
-
20~30m white light view distance; 20~30m IR view distance
- DC12V / PoE power supply
- IP67 ingress protection
- Support three streams
-
Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
- Support P2P function
- Support SMD
-
Support line crossing detection, region intrusion detection,
abandoned/missing object detection, video exception detection
- Dual-system backup
Specification
- Weight
- 0.54 kg
- Image Sensor
-
1/2.8 “CMOS
- Image Size
-
3840 × 2160
- Electronic Shutter
-
1 / 3s ~ 1 / 100000s
- Iris Type
-
Fixed Iris
- Minimum Illumination
-
0.02 lux @F1.6, AGC ON; 0 lux with illumination on
- Lens
-
[email protected],
Horizontal FoV: 106°;
Vertical FoV:57°;
Diagonal FoV:124° - Focus
-
Fixed
- Lens Mount
-
M12
- Day & Night
-
ICR
- Wide Dynamic Range
-
120dB
- BLC
-
Yes
- HLC
-
Yes
- Digital NR
-
Yes
- Defog
-
Yes
- S/N Ratio
-
≥50dB
- Angle Adjustment
-
Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360°
- Video Compression
-
Main stream: H.265+ / H.265 / H.264+ / H.264
Sub /Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG - H.265 Compression Standard
-
Main [email protected] High Tier
- Resolution
-
8MP (3840 × 2160), 6MP (3200 × 1800),
4MP (2688 × 1520), 2K (2560 × 1440),
1080P (1920 × 1080), 720P (1280 × 720),
D1, VGA (640 × 480), 640 × 360, 480 × 240, CIF - Main Stream
-
60Hz: 8MP(1~20fps) /6MP/4MP/2K/1080P (1~30fps)
50Hz: 8MP(1~20fps) /6MP/4MP/2K/1080P (1~25fps) - Sub Stream
-
720P/D1/VGA/640×360/CIF/480×240 (60Hz: 1~30fps; 50Hz: 1~25fps)
- Third Stream
-
720P/D1/640×360/CIF (60Hz: 1~30fps; 50Hz: 1~25fps)
- Bit Rate
-
64 Kbps ~ 12Mbps
- Bit Rate Type
-
VBR / CBR
- Image Settings
-
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness,
Image Mirror, Image Flip, NR, adjustable through client software or web browser - ROI
-
8ROI, each ROI to be configured separately
- Audio Compression
-
G711A/U
- Remote Monitoring
-
Web browser /NVR/NVMS2.X/Mobile APP
- Web Browser
-
Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+
- Online Connection
-
Support simultaneous monitoring for up to 10 users;
support multi-stream real time transmission - Network Protocol
-
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS,
SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS - Interface Protocol
-
ONVIF
- Smart Alarm
-
Motion detection, SMD, SD card full, SD card error, IP address conflict,
cable disconnection, video exception (scene change, video blur and abnormal colour detection) - Smart Event
-
Line crossing /region intrusion detection(human/motor vehicle/
non-motor vehicle classification), abandoned/missing object detection - General Function
-
Watermark, IP address filtering, video mask, heartbeat, smart supplement light,
corridor pattern, image distortion correction, ANR, cloud upgrade - PoE
-
Yes
- Supplement Light Range
-
IR range: 20 ~ 30 m;
White light range: 20 ~ 30 m - Ingress Protection
-
IP67
- Security
-
Video encryption, firmware encryption, configuration encryption,
illegal login lock, IP address filtering, 802.1x authentication, basic and
digest authentication for HTTP - Network
-
RJ45
- Video Output
-
No
- Audio
-
1 Channel audio input;
1 Channel built-in MIC - Storage
-
Built-in micro-SD card slot, up to 256GB
- Hardware Reset
-
Yes
- DORI Distance 2.8mm Lens
-
Detect : 79m(259ft)
Observe : 32m(105ft)
Recognise : 16m(52ft)
Identify : 8m(27ft) - Power Supply
-
DC12V/PoE
- Power Consumption
-
< 6W
- Storage Conditions
-
– 30 °C ~ 65°C (-22°F~149°F),
Humidity: less than 95 % (non-condensing) - Operating Environment
-
– 30 °C ~ 60 °C (-22°F~140°F),
Humidity: less than 95 % (non-condensing) - Compliance
-
NDAA, PSTI
- Dimensions
-
Φ 94.6 × 82.8mm
- Weight
-
Approximately 0.45KG
- Installation
-
Ceiling mounting; wall mounting
