5MP@ 20fps-4MP@ 30fps True Colour Eyeball TVI/AHD/CVI/CVBS 2.8-12mm V/F IR 12v

WHD5EBAVAF
Price on sign in

In stock

Product description

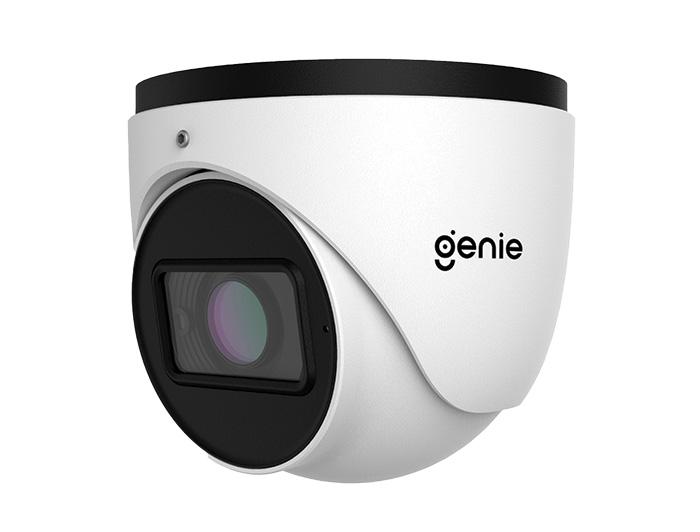

The Genie WHD5EBAVAF is a professional, True Colour modern eyeball design CCTV camera that
boasts 4-in-1 technology (AHD, TVI, CVI, CVBS) and offers a 2.8mm to 12mm motorised auto focus lens.
The camera offers IP67 protection and up to 50m viewing when the IR illumination is switched on.


Key features

  • 5MP @ 20fps / 4MP real-time image, high resolution, true colour
  • AHD, TVI, CVI, CVBS video output
  • CMOS progressive scan, improves moving object capture
  • Supports OSD menu
  • High speed, long distance and real time transmission
  • Auto colour to B&W at low illumination
  • Supports ICR switch, true day / night
  • Supports noise reduction function
  • 30 ~ 50m IR night view distance
  • IP67 ingress protection
  • Up to 1500 TVL resolution
  • Support COC

Specification

Weight
0.68 kg
Camera Image Sensor

1 / 2.5” CMOS

Camera Image Size

2944 × 1656

Camera Image System

PAL / NTSC

Camera Resolution

5MP

Camera Electronic Shutter

Auto; 1/50s~1/100000s (PAL) 1/60s~1/100000 (NTSC)

Camera Minimum Illumination

Colour : 0.01 Lux @ F1.2, AGC ON
B&W : 0 Lux with IR

Camera Lens

2.8-12 mm

Camera Lens Mount

D14

Camera S/N Ratio

≥52dB (AGC Off)

Camera Video Output

AHD / TVI / CVI / CVBS

Camera Audio

No

IR Distance

30 ~50 m

Camera Frame Rate

TVI: 2944×1656@20fps, 2560×1440@25fps/30fps
AHD: 2944×1656@20fps, 2560×1440@25fps/30fps
CVI:2560×1440@25fps/30fps
CVBS: PAL/NTSC

Function Control

OSD (COC Control)

Day / Night

ICR

Digital WDR

Yes

Digital NR

Yes, 2D DNR

AGC

Yes

Auto White Balance

Yes

BLC

Yes

LSC

Yes

HLC

Yes

Sharpness

Yes

Smart LED

Yes

Image Setting

Yes

Defect Correction

Auto

Language

Chinese and English

Angle Adujustment

Pan: 0°~360°, Tilt: 0°~80°,
Rotation: 0°~360°

Ingress Protection

IP67

Power Supply

DC12V (± 15%)

Power Consumption

IR Off : < 1W, IR On : < 6W

Working Environment

– 30°C ~ 50°C,
10 % ~ 90 % (Relative Humidity)

Dimensions

Ф 111.5 x 99.6 mm

Weight

Approximately 0.55Kg
