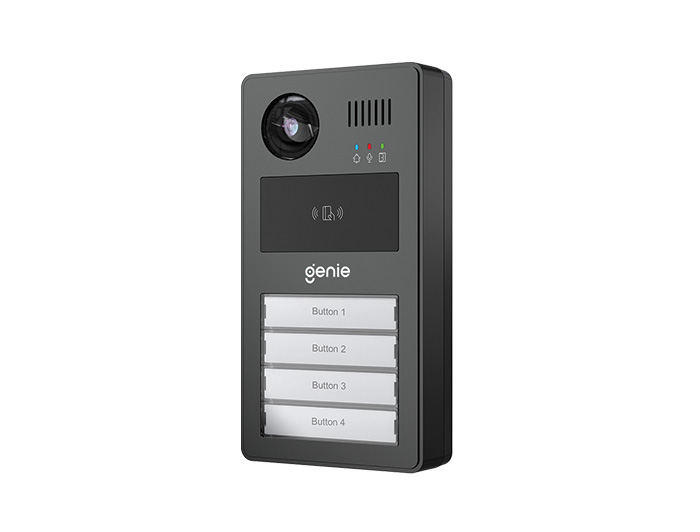

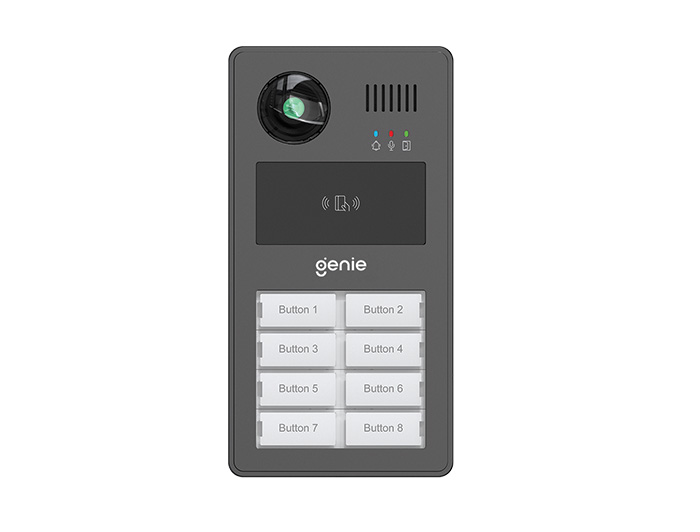

NDAA 2MP Video Intercom Door Station 1 to 8 Button, Card Reader, IK8, IP65, PoE
Out of stock
Product description
The Genie GCN1248 is a versatile video intercom door station featuring a 2MP camera with real time H.265 encoding and advanced intelligent analytics.
Designed for secure and convenient access control, the GCN1248 supports door unlocking via indoor station, mobile app, or M1/EM card authentication.
With built-in Wi Fi, customisable nametag calling buttons, PoE power, and IK08/IP65-rated aluminium alloy construction, it provides a reliable and scalable
solution for residential, commercial, and multi occupancy environments.
Key features
- 2MP (1920×1080) real-time H.265 encoding
- Auto day-night switch
- Support 3D DNR, HWDR, BLC, HLC
- Built-in card reader for M1/EM card
-
Support door opening by indoor station or by mobile APP or by swiping card
- Support 2.4G Wi-Fi
-
Intelligent analytics: video exception detection, person detection, face detection, face capture
-
Support noise suppression and echo cancellation
-
Customised nametag buttons calling design for easier calls
-
Support four button module options: 1/2/4/8 buttons
-
Backlight compensation behind the nametag buttons
- Standard PoE power supply
-
IK08 & IP65 higher protection level with aluminium alloy material
Specification
- Weight
- 0.41 kg
- Camera Image Sensor
-
1 / 2.8” Progressive Scan CMOS
- Camera Image Size
-
1920 x 1080
- Camera Electronic Shutter
-
Auto / Manual; Manual:1s ~ 1/100000s
- Camera Iris Type
-
Fixed IRIS
- Camera Minimum Illumination
-
Colour: [email protected], AGC ON;
B&W: 0 lux with IR - Camera Lens
-
[email protected]
Vertical FOV: approx. 80.5'
Horizontal FOV: approx. 138'
Diagonal FOV: approx. 161' - Camera WDR
-
120dB
- Camera S/N Ratio
-
≥50dB
- Camera BLC
-
Yes
- Camera HLC
-
Yes
- Camera Defog
-
No
- Camera DNR
-
2D/3D NR
- Image Video Compression
-
Main stream: H.265+/H.265/H.264+/H.264
Sub/third stream: H.265+/H.265/H.264+/H.264/MJPEG - Image H.264 Compression Standard
-
Baseline Profile / Main Profile / High Profile
- Image Bit Rate Type
-
VBR/CBR
- Image Bit Rate
-
64Kbps ~ 6Mbps
- Image Resolution
-
1080P(1920×1080), 720P(1280×720), D1, CIF, 480×240
- Image Main Stream
-
1920×1080/1280×720 (60Hz: 1~30fps; 50Hz: 1~25fps )
- Image Sub Stream
-
720P/D1/CIF (60Hz: 1~30fps; 50Hz: 1~25fps )
- Image Third Stream
-
D1/CIF/480×240 (60Hz: 1~30fps; 50Hz: 1~25fps )
- Image Settings
-
Saturation, hue, brightness, contrast, wide dynamic range, sharpness, NR, etc.
adjustable through client or web browser - Audio Compression
-
G711A/U
- ROI
-
8 ROI, each ROI to be configured separately
- Network Interface
-
RJ45 (10/100 Base-T)
- Video Output Interface
-
No
- Audio Interface
-
Built-in MICx1, built-in speakerx1;
support noise suppression and echo cancellation - Storage Interface
-
1 Channel built-in micro SD card slot, up to 256GB
- Reset Interface
-
Yes
- RS485
-
Yes (for card reader or access control system access)
- Wiegand Interface
-
Yes (Wiegand input or output configurable)
- Alarm input/output
-
No
- Door Lock Output
-
2 Channel
- Exit Button
-
2 Channel
- Anti-Tamper Interface
-
1 Channel
- Swiping Card Area
-
Support IC card/EM card
- Indicators
-
Yes
- Wi-Fi
-
Support 2.4G Wi-Fi function
- Card Type
-
Mifare card / Desfire card/ FM1208 Card/ Gicard / EM Card
- Card Reading Protocol
-
ISO14443A/B protocol, EM41XX
- Card Reading Frequency
-
13.56MHz & 125KHz
- Card Reading Duration
-
<1s
- Card Reading Distance
-
0~3cm
- Card Capacity
-
15000
- Button
-
Up to 8 buttons, 1, 2, 4 or 8 buttons configurable
- Backlight
-
Yes
- People Info Adding
-
Adding the relevant information of people through WEB or NVMS
Up to 3,000 - People Management
-
Support adding, modifying, deleting and viewing people information
- Personal Properties
-
ID number, list type(group), name, gender, age, phone number, card ID,
password, door opening mode, note, room number, floor, etc. - Door Opening Modes
-
Swiping card /indoor station/APP/NVMS
- Schedule
-
Yes
- Sub Door Station
-
Yes
- Capacity
-
50000 event items can be recorded
- Remote Monitoring
-
Web client/indoor station/CMS remote control
- Online Connection
-
Supports simultaneous monitoring for up to 6 users
Supports multi-stream real time transmission - Network Protocol
-
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, SNMP, FTP, RTMP,
802.1x, UPnP, HTTPS, HTTP POST, Qos, SIP, P2P - Interface Protocol
-
ONVIF
- Storage
-
Network remote storage, SD card storage
- Smart Alarm
-
Motion detection, SD card error, SD card full, video exception
- General Function
-
Watermark, IP address filtering, heartbeat, illegal login, dual system backup
- PoE
-
Yes (802.3af)
- P2P
-
Yes, turn on by default
- IR Distance
-
0.3-5m
- Protection Grade
-
IP65, IK08
- Network Security
-
Video encryption, firmware encryption, configuration encryption,
illegal login lock, IP address filtering, HTTPS, 802.1x - Intelligent Analytics
-
Person detection, face detection, face capture
- Face Detection
-
Pupil distance of a facial image over 20 pixel can be detected
- Face Capture
-
Outputting the optimal face image by precise detecting, tracing, capturing,
scoring and screening the moving faces - Original Image Capturing
-
Supports original image capturing and self-defined overlaid information (like device ID, time, etc.)
- Face Comparison
-
No
- Power
-
DC12V/PoE
- Power Consumption
-
< 10W
- Environmental protection
-
RoHS 2.0, REACH, WEEE, directive94/62/EC
- Certificate
-
CE, FCC
- Working Enviroment
-
-30 ~60 , Humidity: less than 95% (non-condensing)
- Dimensions ( mm )
-
Approx. 91mm x 174mm x32.4mm
- Weight ( net )
-
Approx. 0.407 kg
- Installation
-
Wall Mounting
