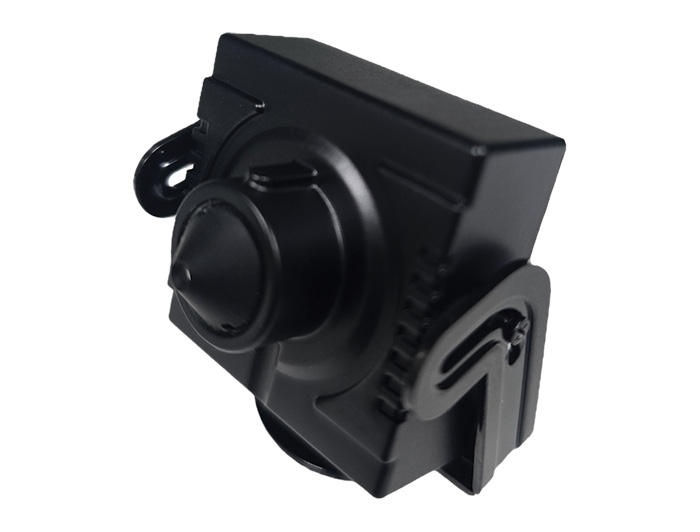

NDAA 1/2.8″ 5MP IP Encapsulated Mini Camera with 4.3mm Conical Pinhole Lens
Out of stock
Product description
The Genie GIPCAM5NCP is a 5MP IP encapsulated camera with a 1/2.8” progressive scan
STARVIS sensor for use in low light conditions using H.265 video compression.
The camera is supplied with a 4.3mm pinhole lens and mounting bracket. NDAA Compliant.
Key features
- 1/2.8” Sony 5.69MP STARVIS image sensor
- Max. 30fps/ (2560×1920) Resolution
- Triple streaming (H.265/H.264/MJPEG)
- 4.3mm pinhole lens
- Real-WDR(Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
- PoE (IEEE802.3af)
- ONVIF Ver17.06 Compliant. Profile S
-
NDAA Compliant
Specification
- Weight
- 0.1 kg
- Image Sensor
-
1/2.8” Sony 5.69MP STARVIS image sensor
- Resolution
-
2560 × 1920 / 2560 × 1440 / 2048 × 1536
1600 × 1200 / 1920 × 1080 / 1280 × 1024
1280 × 960 / 640 × 480 / 640 × 360
320 × 240 / 320 × 180 - Lens
-
4.3mm pinhole Lens
- Total Pixels
-
2704(H) x 2104(V), 5.69 MP
- Effective Pixels
-
2616(H) x 1964(V), 5.14 MP
- Maximum Frame Rate
-
Max 30fps@ all resolution
- Day & Night
-
Auto / Day(Colour) / Night(BW), ICR Control
- DNR
-
2DNR, 3DNR
- Real WDR
-
120dB
- Motion Detection
-
432 Zone, Sensitivity 1 ~ 5 Step, On / Off
- Privacy Area
-
On / Off (16 Programmable Zones)
- External Video
-
CVBS 1.0Vp-p
- Video Compression
-
H.265/H.264/MJPEG
- Video Quality
-
H.265 : Bitrate Control
H.264 : Bitrate Control
MJPEG : Quality Level Control - Video Streaming
-
Triple Stream
(RTP/RTSP, Unicast RTP, Multicast RTP) - Power Supply
-
PoE, DC12[V] ± 10%
- Operating Temperature
-
0°C ~ +50°C
- Humidity
-
0% ~ 90%
- Dimensions
-
36mm(W) X 36mm(H) X 19.5mm(D)
- Weight
-
50g (Approx.)
- ONVIF
-
ONVIF Ver17.06
- LAN Interface
-
RJ45 10/100-base-T Ethernet auto sensing PoE(IEEE 802.3af) Interface
- Protocol
-
TCP/IP, UDP/IP, RTP,RTSP, RTCP, NTP, HTTP, DHCP, FTP, SMTP, DNS, DDNS
